Arezzo 100mm Silent Extractor Fan – Humidistat – Chrome

Arezzo 100mm Silent Extractor Fan – Humidistat – Chrome

The unobtrusive Arezzo silent bathroom extractor fan uses the latest technology to deliver you optimal performance, comes with decorative chrome front panel. Suitable for a wide variety of fittings such as walls, ceilings and panels.

The humidity sensor detects moisture in the range of 40% to 90% relative humidity. The fan – depending on the connection solution to the network – can be launched automatically or manually.

AUTOMATIC START: the device switches on when the air humidity level exceeds the value set on the H-potentiometer and it switches off after passage of time (defined on the T-potentiometer) counted from the moment of humidity level decrease.

MANUAL START: the fan is activated by the switch being part of the building’s electrical system (not included in the device) or a separate switch intended for fan. After turning off the switch, the device (as in the first case) switches off after the time specified on the T-potentiometer, if the moisture level in the room is below the level set on the H-potentiometer. The moisture detection system is the master system.

Product Details

• Fan Housing Size: 130 x 130 x 88mm
• Front Panel Size: 160 x 160 x 30mm
• Hole Diameter: 100mm

• Front Panel Colour: Chrome
• Panel Shape: Square
• Silent operation
• Material: ABS plastic
• Ball bearings
• IPX4 – electrically safe for use in the bathroom
• Humidity sensor + timer
• Maximum operating temperature 40°C
• Installation Type: Wall / Ceiling
• Non-return valve (ZZ) usage ability
• Quiet operation – Only 26 decibels
• Air pressure PA: 26
• Airflow per hour: 75
• Standards: CE
• Wattage: 5

Product images are for illustrative purposes only and may differ from the actual product.

Guarantee: 2 Year

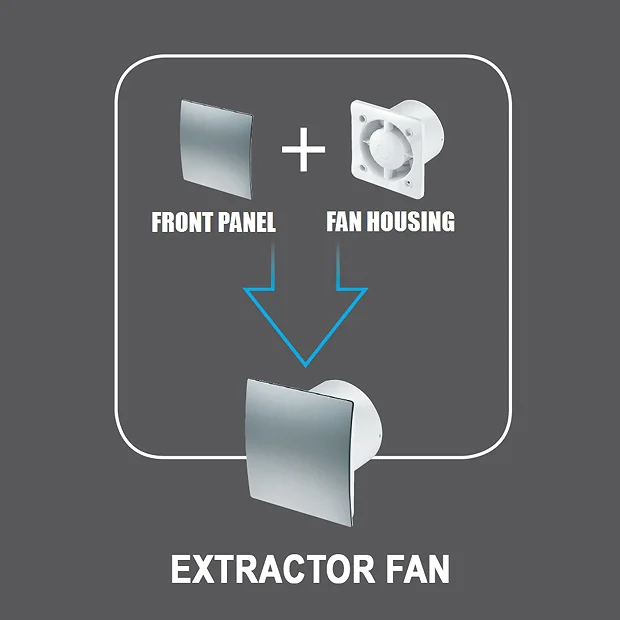

Comprises

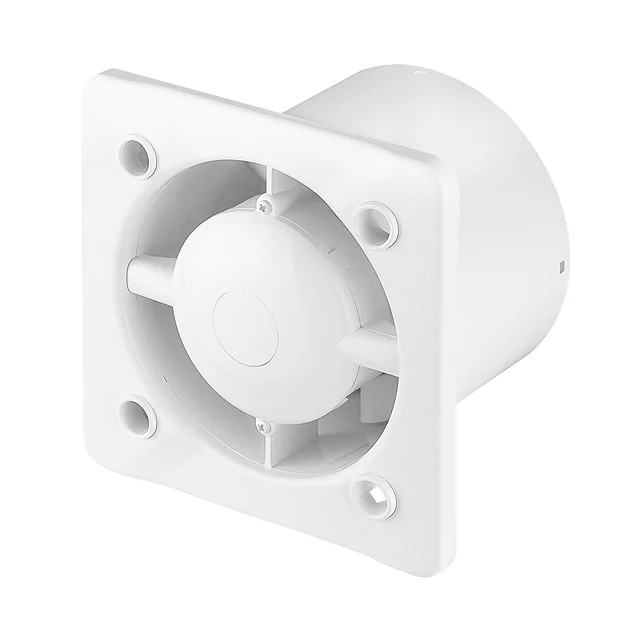

(1) 100mm Silent Bathroom Fan Housing – Humidistat
(1) Curved Front Panel – Chrome
