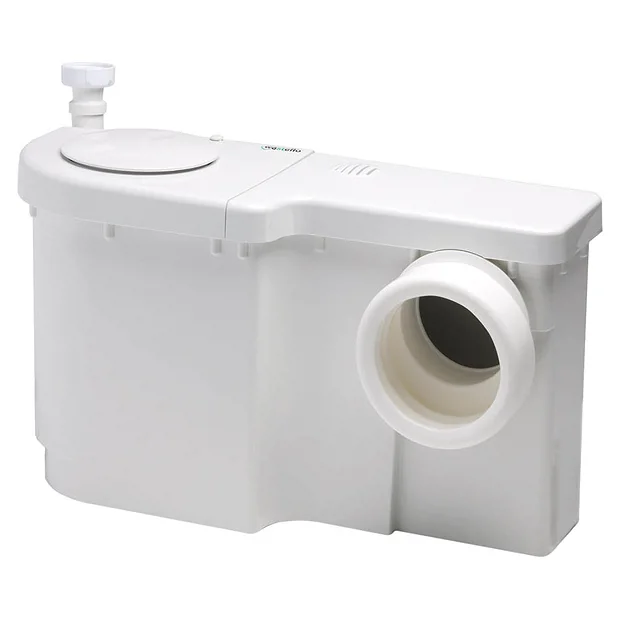

Stuart Turner Wasteflo WC1 Macerator Waste Pump

Stuart Turner Wasteflo WC1 Macerator Waste Pump – 46626

Macerators are a simple way to pump waste water from a sanitary appliance where there is no local access to a soil pipe. The Wasteflo WC1 is a slimline sanitary macerator for domestic use, designed for the drainage of a fixed WC and requiring just 140mm clearance between the WC spigot and bathroom wall.

This model is designed to pump waste away from one WC.

Product Details

• Brand: Stuart Turner
• Product Code: 46626
• Model: WC 1
• Noise level: 50 dB (typical)
• Adjustable WC coupling
• Slimline design
• Easy access cassette unit
• Maximum Head: 5.4 metres

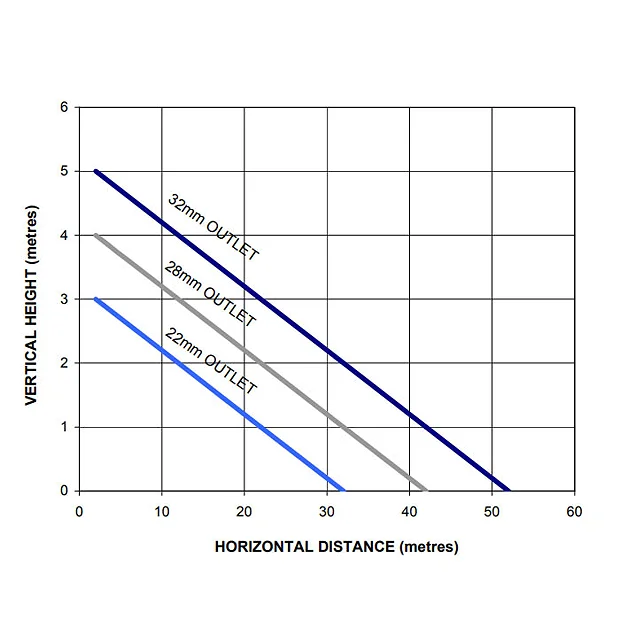

• Pumping Distance (vertical): Up to 5 metres
• Pumping Distance (horizontal): Up to 52 metres
• Maximum Flow: 90 l/min
• Maximum Ambient Air Temperature: 40 °C
• Min / Max Water Temperature: Min 4 °C / Max 50 °C
• WC: 102 mm dia.
• Outlet: 32mm, 28mm, 22mm wastepipe adaptor
• Power Supply/Phase/Frequency: 230 V a.c./ 1 / 50 Hz
• Current (Full Load): 2.2 Amps
• Power Consumption: 500 Watts
• Fuse Rating: 5 Amps
• Power Cable (Pre-wired): 1.5 metres
• Enclosure Protection: IPX4
• Length: 482mm
• Width: 180mm
• Width Behind Pan: 140mm
• Height (Excluding Hoses): 278mm
• Weight (Including Fittings): 7.9Kg

2 Year guarantee
